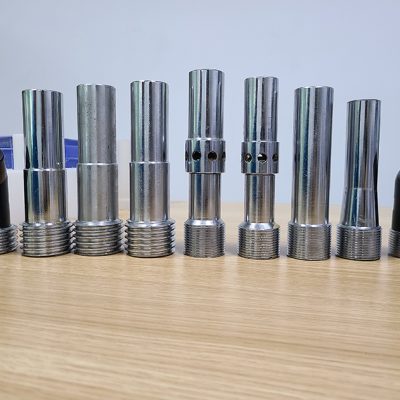

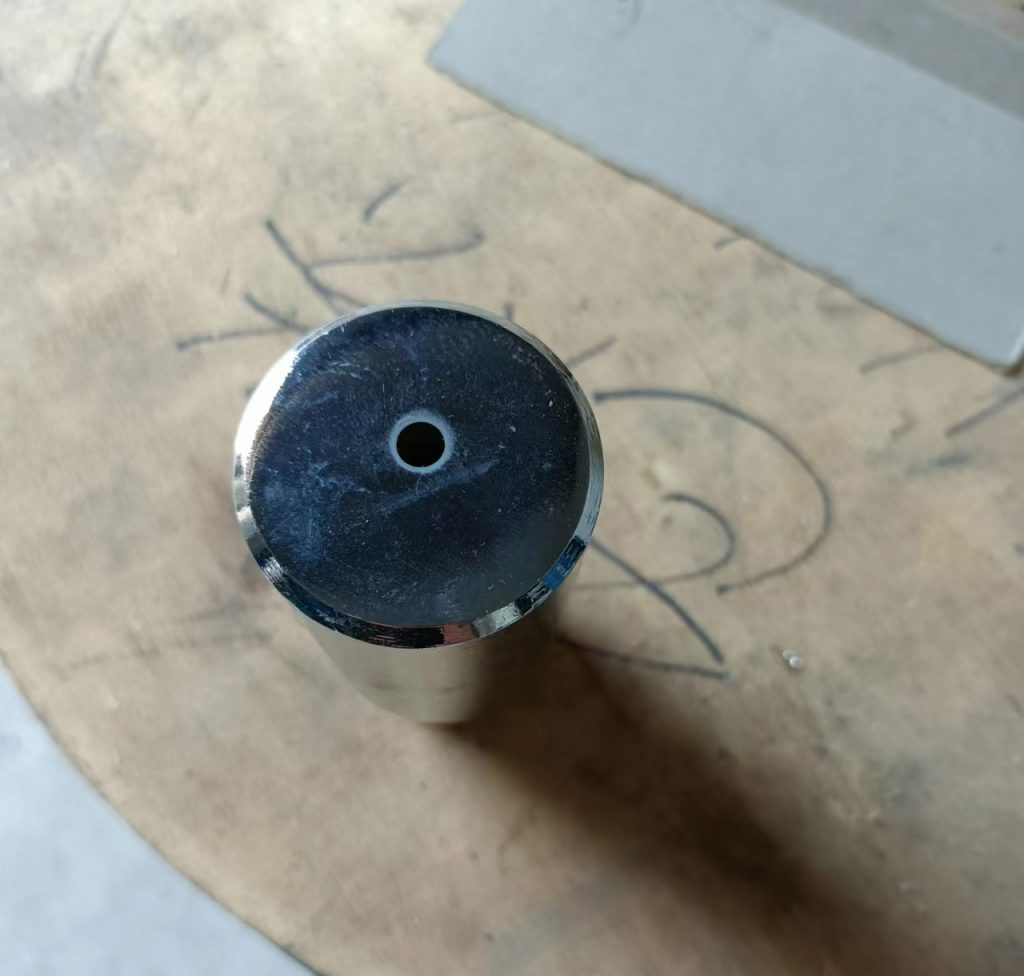

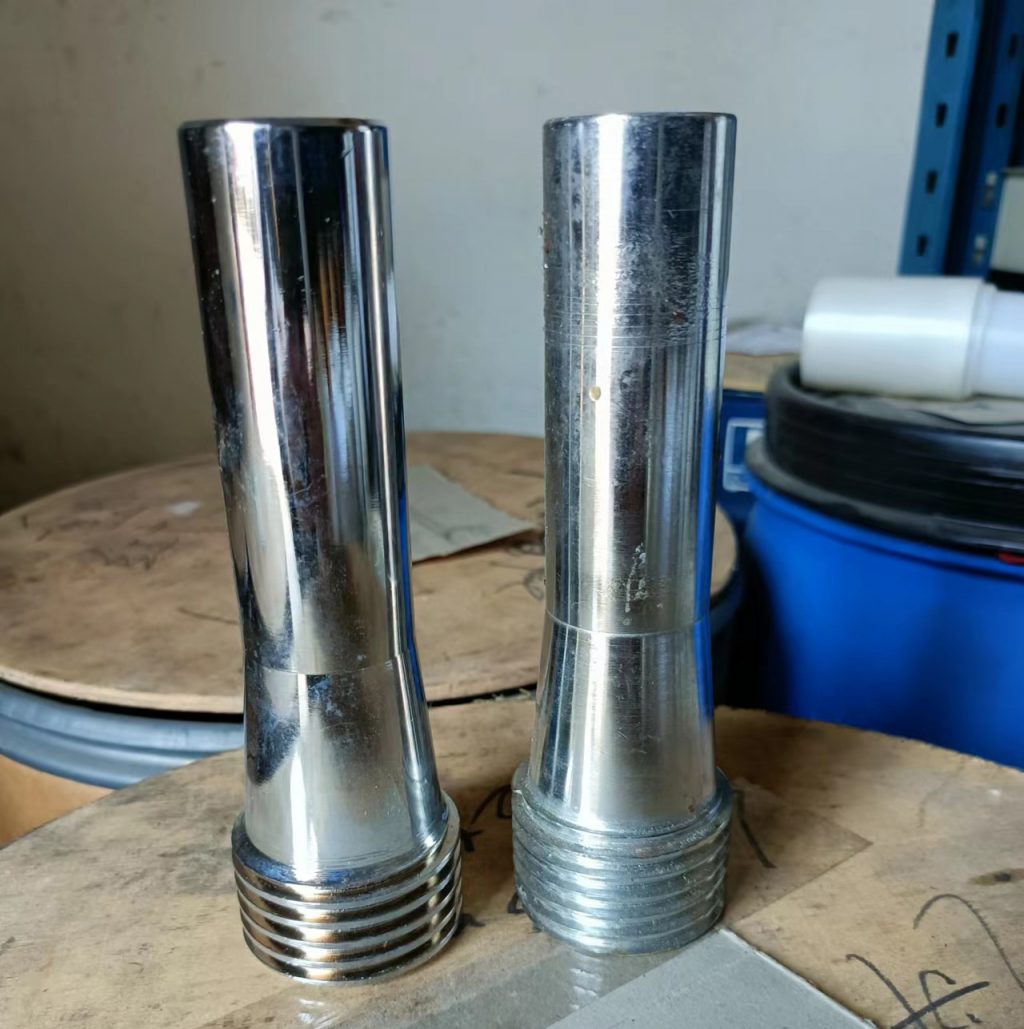

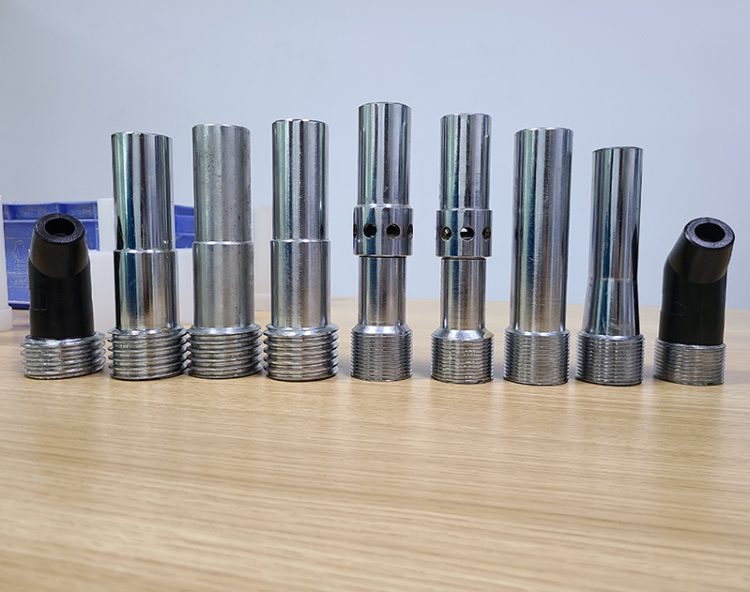

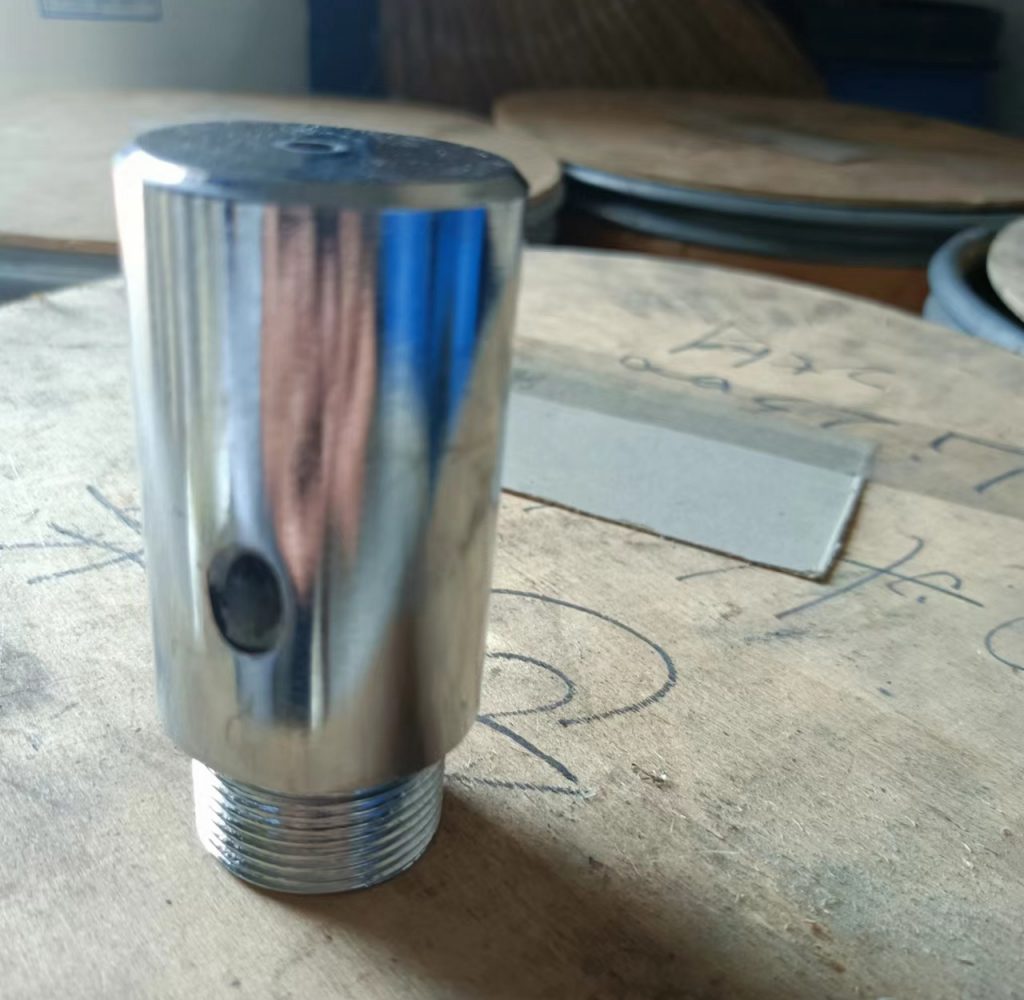

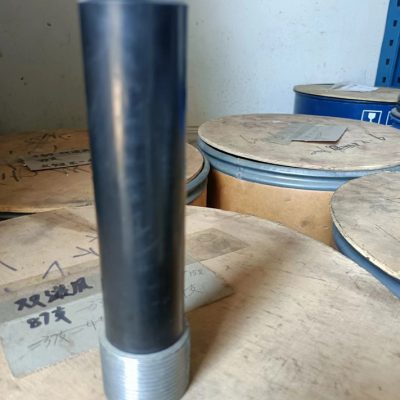

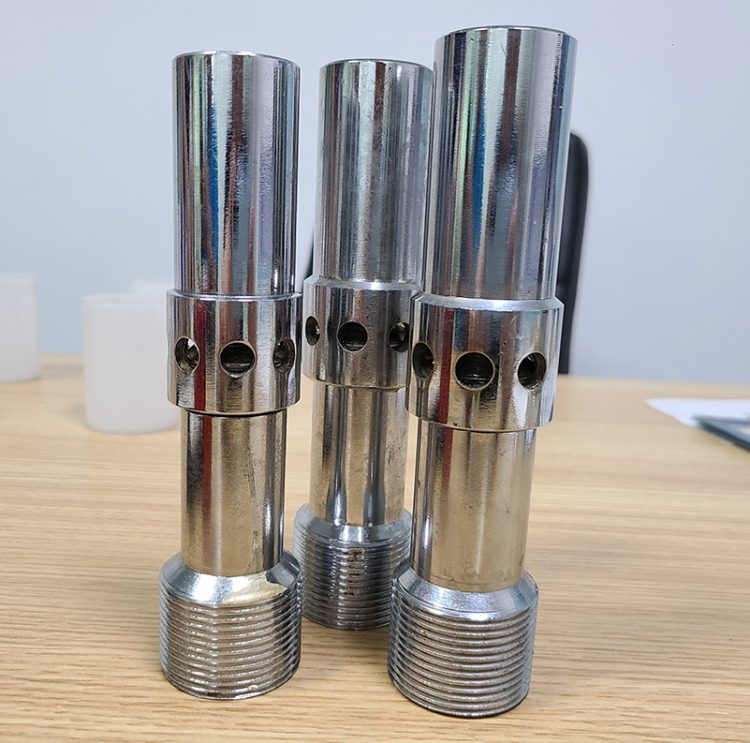

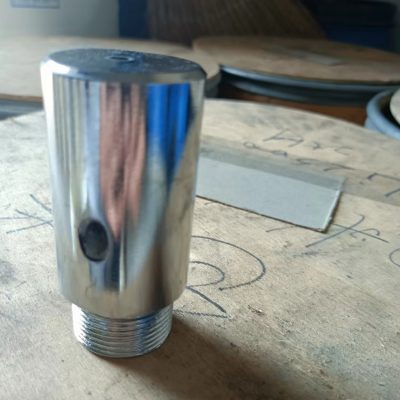

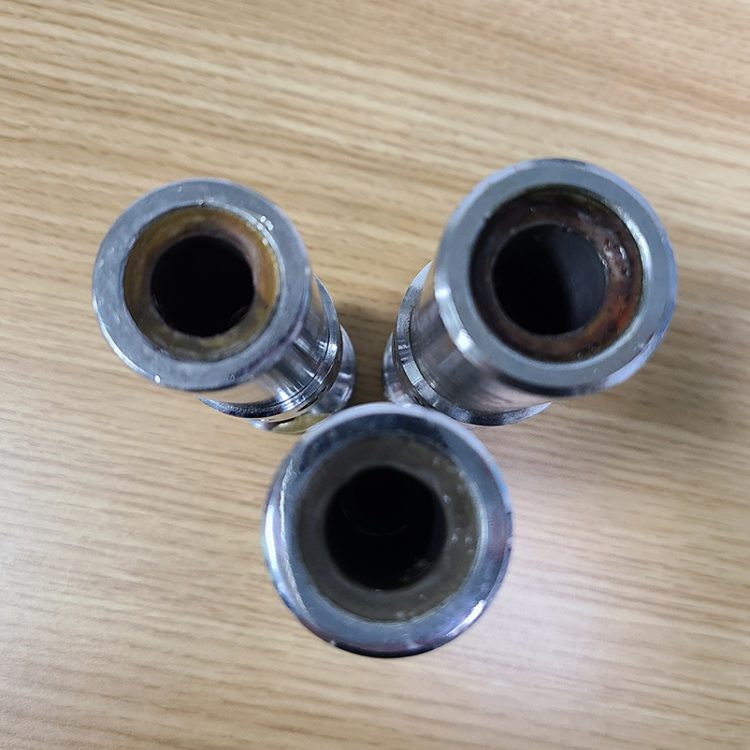

Tungsten carbide sandblast nozzles are mainly used in the field of oil drill, plane, shipping, automobile, chemical industry and build engineering etc.

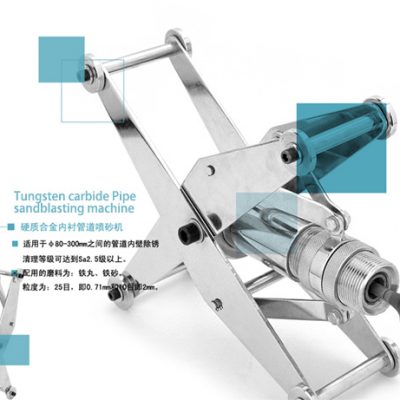

The product is better to be used to derust the rust on the inner-wall of pipes between φ80-300mm with cleaning grade to Sa 2.5.

The grinding materials matched with the cleaner are: Shot, ore sand

Abrasive grain mesh: 25 and 10, that is 0.71mm and 2mm respectively.

Description Type Throat diameter
(mm)
Length
(mm)
Air consumption volume
(m³/min)
Use Price
High-speed YG-G6 6 135 1.68-2.70 It is mainly used for surface sandblasting, derusting and decontamination treatment and derusting efficiency of large equipment such as ships, chemicals, water conservancy and machinery: 30 ㎡ /h $50
YG-G8 8 170 2.71-4.41 $50
YG-G8D 8 145 2.71-4.41 $50
YG-G10 10 180 3.91-6.38 $51
YG-G10D 10 150 3.91-6.38 $51
YG-G12 12 190 6.99-11.40 $51
YC-G14 14 190 $51

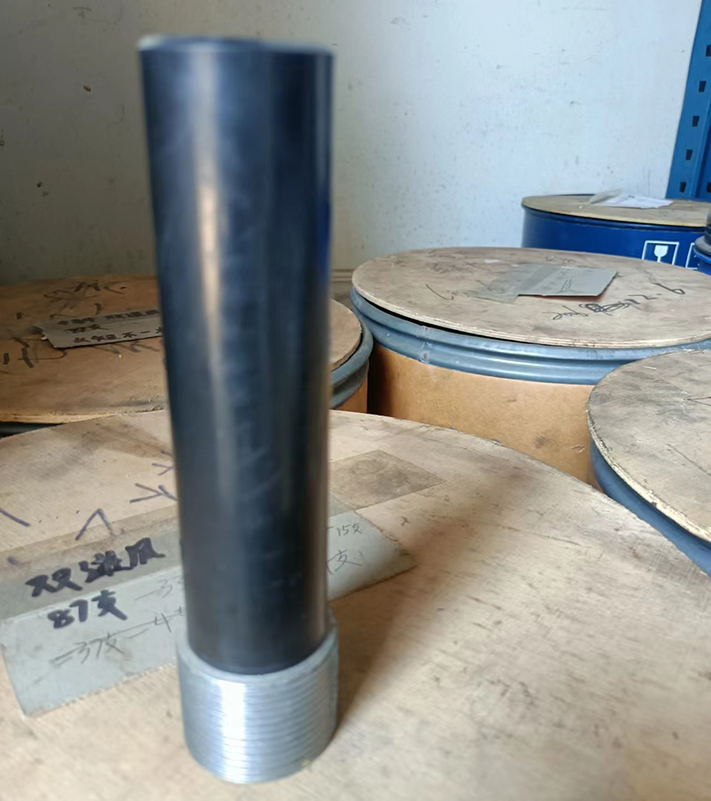

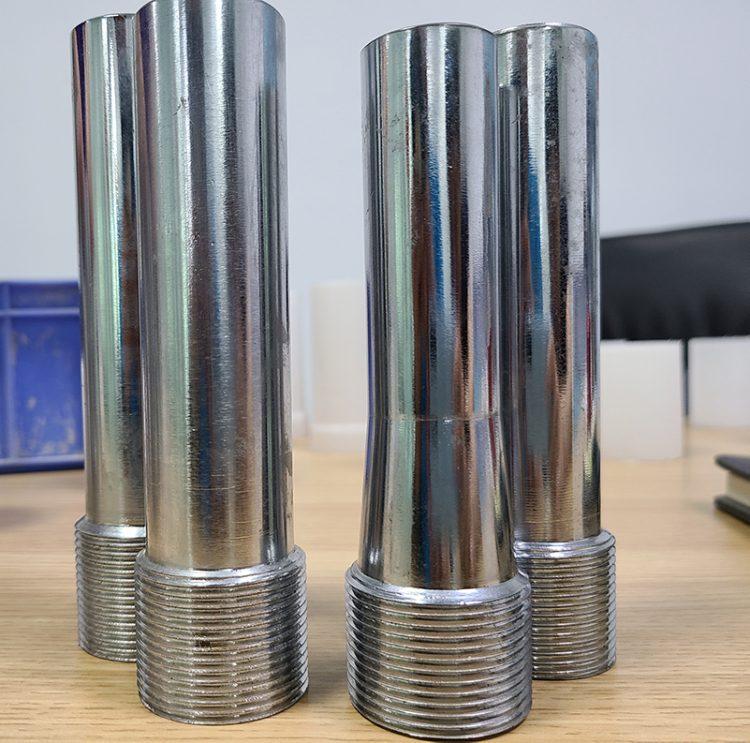

Long-range Metric fine thread YG-Y4WZ 6 125 1.68-2.70 It is mainly used for derusting and decontamination of containers, ships, bridges, vehicles and chemical pipelines, with an efficiency of 18-20 ㎡ /h $40
YG-Y5WX 8 145 2.71-4.41 $42
Metric coarse thread YG-Y5WXD 6 125 2.71-4.41 $40
YG-Y5WXD 8 113 2.71-4.41 $40
YG-Y6WBX 10 175 3.91-6.38 $50
YG-Y6WXD 10 113 3.91-6.38 $44
YG-Y8WX 12 180 6.99-11.40 $50
YG-YWGD 12 115 6.99-11.40 $42
14 190 $50

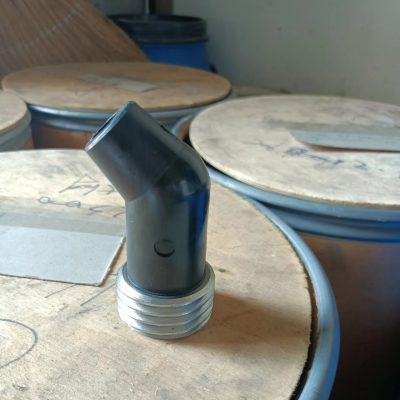

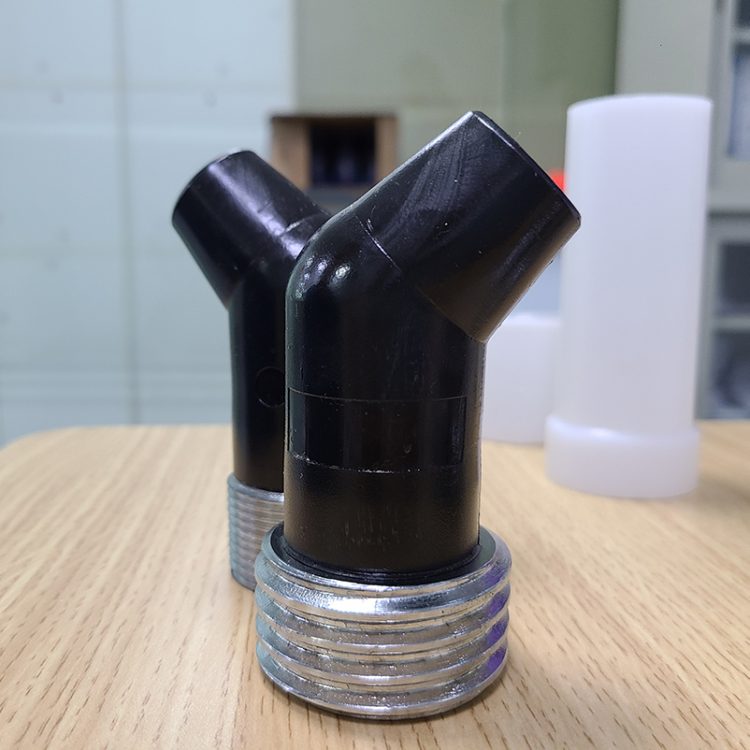

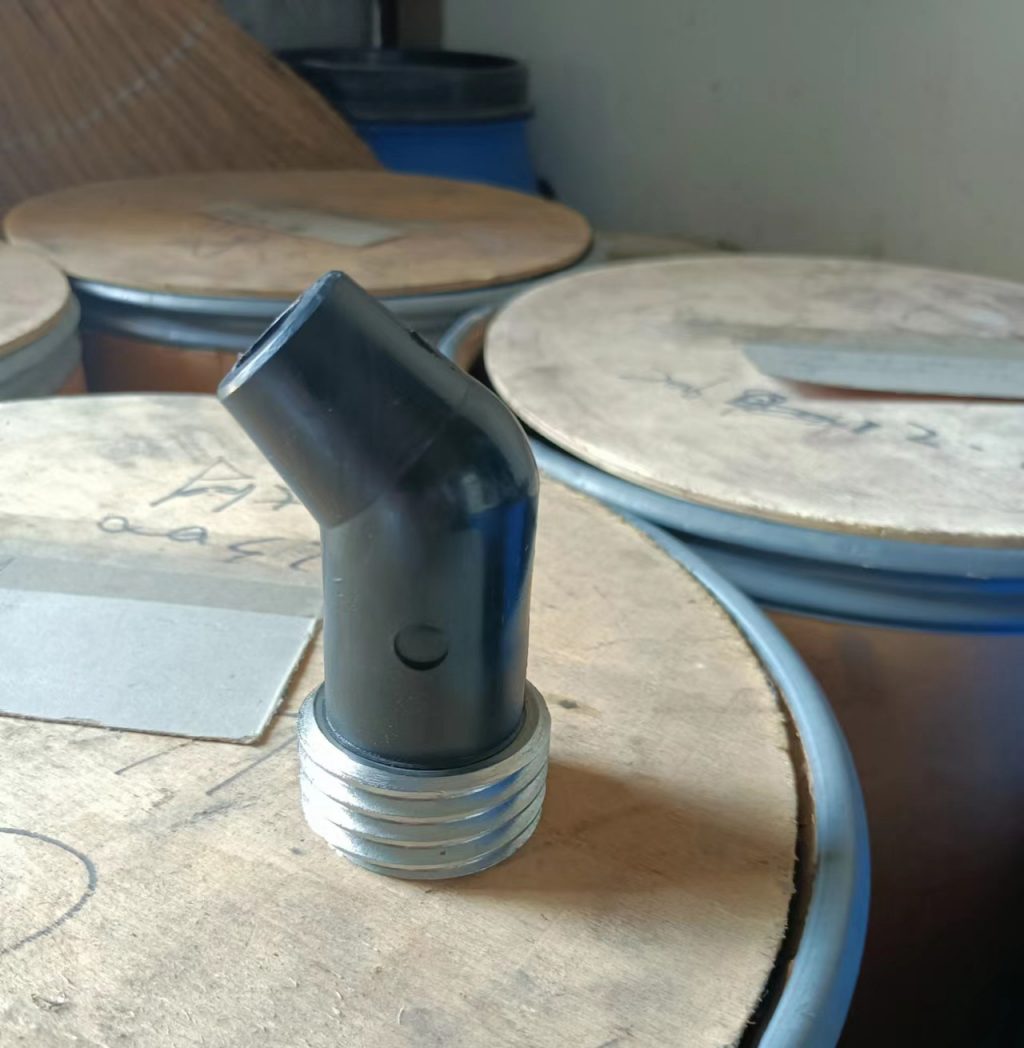

Special 45°Corner YG-TX 6 105 2.71-4.41 It is mainly used for sand blasting of dead corners, inner walls and special purposes of pipelines. $42
YG-TY 8 100 2.71-4.41 $42
YT-TG 10 100 2.71-4.41 $48
Jeans treatment YT-TG 12 100 Mainly used for denim surface sandblasting. $42
YGH-N4 6 125 1.68-2.70
YGH-N5 8 145 2.71-4.41
YGH-N7 10 175 3.91-6.38
Aluminum shell nozzle 400 $275
Small three hole 85 $67
Big three hole $81
Large piston rod sleeve $67

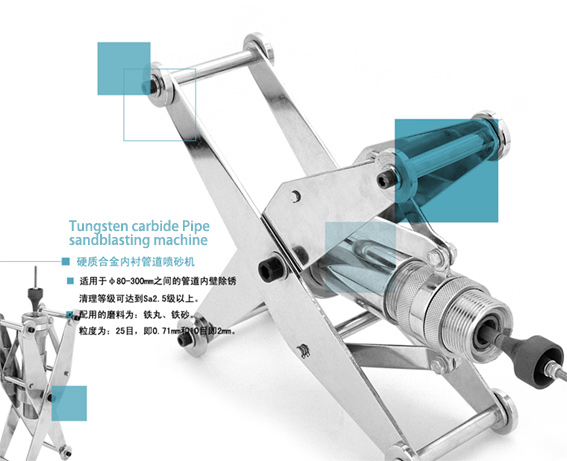

Pipe sandblasting machine $446
